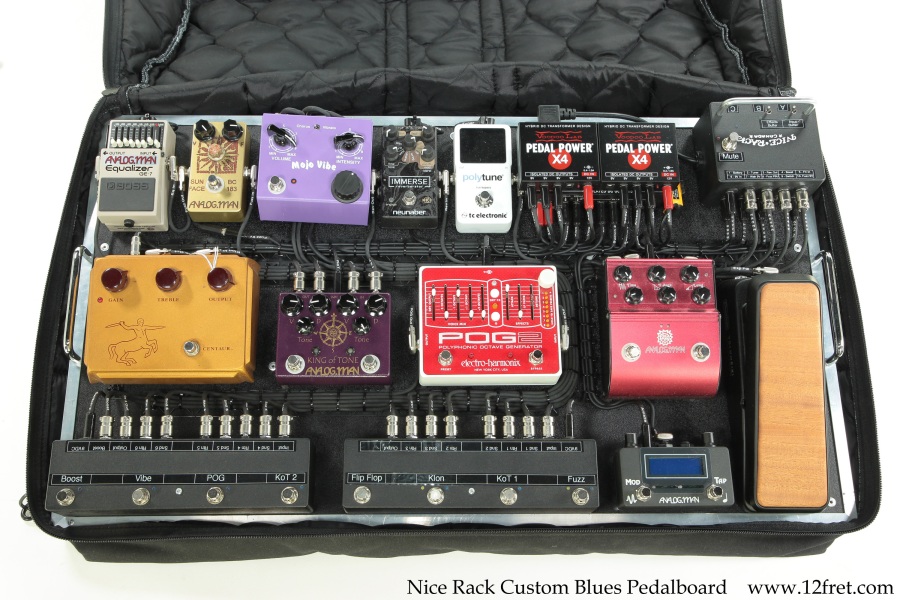

Nice Rack Custom Blues Pedalboard – (No Longer Available)

This Nice Rack Custom Blues Pedalboard is one of a pair of purpose-built units, created and basically never used. While this board was built for a Blues project, the other board – listed separately – was aimed at a Cover Band project.

If you’re used to seeing most pedalboard assemblies, the Nice Rack Blues Custom is a revelation. The design is thorough and comprehensive, the materials used are high quality, and the construction is top notch. These were not inexpensive builds, and it’s clear why. The effects are all high end and include a genuine Klon Centaur!

Sold with its original Custom gig bag made by Studio Slips, which contains the extra, custom cables.

The Nice Rack Custom Blues Board Components:

Here are notes from the builder of the Nice Rack Blues board:

“This is a Series Wired Pedalboard System with Custom Built True Bypass Switchers.

The purchaser of the system will receive a Signal Flow chart. The purchaser of the system will also receive a 15 minute telephone call for an overview of the system.

This Custom Built System Interface features include:

• Input Buffer
• Fuzz Buffer
• Wah Insert Loop
• Carbon Battery or Power Supply Voltage to Fuzz Pedal Switching Circuit
• Output Buffer
• Switchable Clean Boost Circuit
• System Mute Switch
• Tuner Constant Input Circuit in Parallel with the System Output

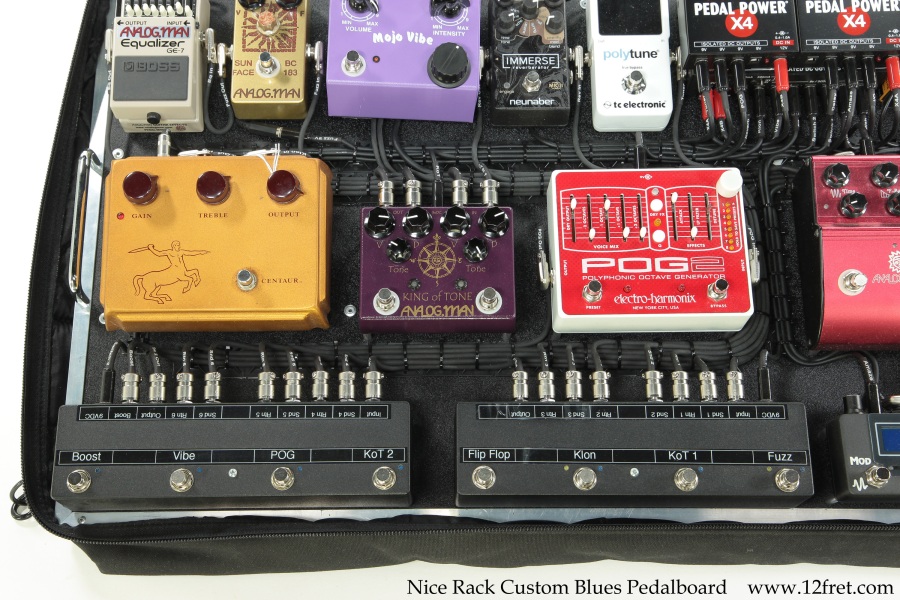

Custom Audio Switcher #1 features include;

• 3x True Bypass Effects Loops
• 1x Flip Flop Switch to toggle between Loop #1 & Loop #3 being active
• Loop 1 Fuzz Pedal + Eq Pedal
• Loop 2 King of Tone Side 1
• Loop 3 Klon

Custom Audio Switcher #2 features include:

• 3x True Bypass Effects Loops
• Loop 1 King of Tone Side 2
• Loop 2 POG
• Loop 3 Vibe
• Control Switch for Clean Boost Circuit

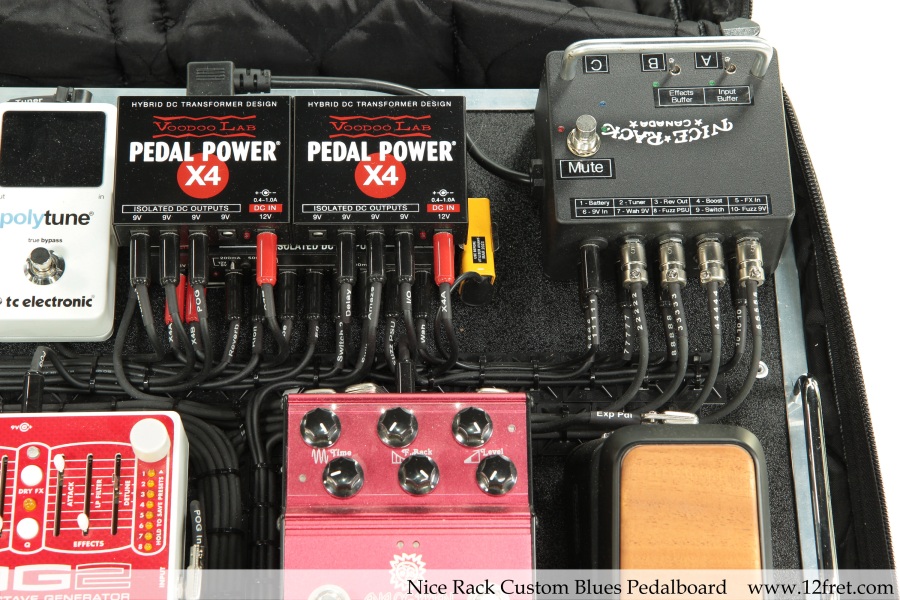

System Power Supply by Voodoo Lab.

The system is wired with Evidence Audio Monorail cable & SquarePlug plugs for audio, with Canare GS4 Cable & Switchcraft plugs for power.”
